Optical Mirrors

High Power Laser Mirrors

Precision high-reflectance dielectric mirrors engineered for high-power CW and pulsed laser systems. >99.9% reflectance with optimized laser damage threshold coatings on low-absorption fused silica substrates. Designed for demanding laser resonator and beam delivery applications.

Material

UV Fused Silica

Availability

Standard / Custom

Request a Quote Ask AI Optical Engineer

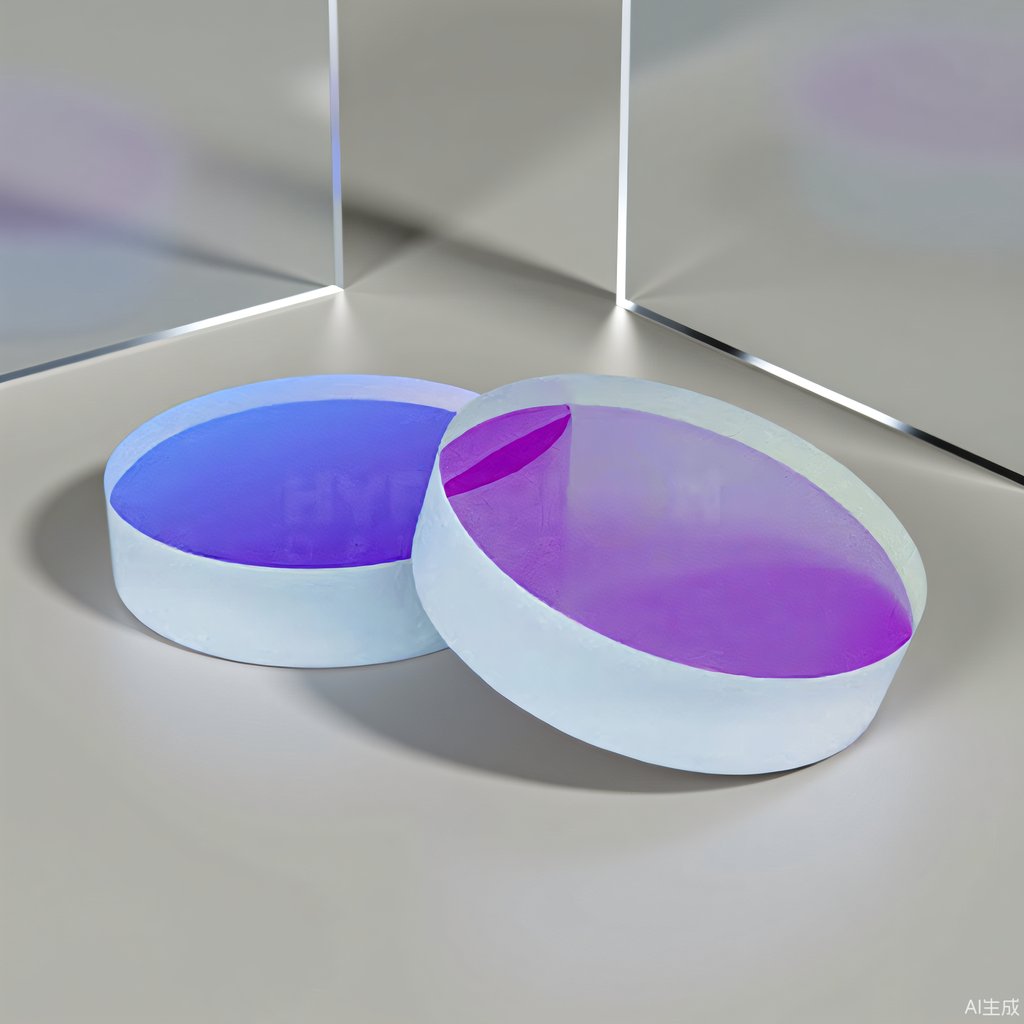

High Power Laser Mirrors

Key Specifications

Critical Parameters for Mirrors

When specifying this product, these parameters most directly impact performance and cost:

Wavelength Reflectivity Surface Quality Flatness Damage Threshold
Substrate MaterialUV Fused Silica / N-BK7
Reflectance> 99.9% (dielectric HR) / > 99.99% (ultra-HR)
LIDT (Pulsed)> 20 J/cm2 @ 1064nm, 10ns; > 40 J/cm2 @ 1064nm, 10ns (optimized)
LIDT (CW)> 10 MW/cm2 @ 1064nm CW
Wavelength RangeCustom: 193nm, 266nm, 355nm, 532nm, 1064nm, 10.6um
Flatnesslambda/10 (standard) / lambda/20 (precision)
Surface Quality20-10 / 10-5 (MIL-PRF-13830B)
Diameter Range12.7mm - 150mm
AoI Range0 degrees (normal) to 45 degrees
Damage MechanismCoating and substrate absorption minimized

Parameter Reference Guide

Typical Standard capability — available as shown
Available Alternative options exist — request quotation
Custom Per your drawing — quote after review
Subject to Review Depends on project specifics

Available specifications vary by material and configuration. Contact engineering for exact capabilities.

What Is High Power Laser Mirrors?

High power laser mirrors are designed to withstand intense laser radiation without damage. They feature fused silica substrates with precisely engineered multi-layer dielectric coatings optimized for specific laser wavelengths and pulse durations.

When Should You Use This Product?

Use high power laser mirrors in kW-class CW laser systems, high-energy pulsed lasers, and applications where standard mirrors would suffer thermal distortion or coating damage. Critical for laser resonators and high-power beam delivery.

Available Optical Materials

MaterialAvailabilitySpec Sheet
UV Fused Silica Standard / Custom See material page

All materials are available in standard and custom thicknesses. Browse all 30+ optical materials

Optical Coating Options

Anti-Reflection (AR)

Single-layer or multi-layer AR coatings for specific wavelength bands. Reduce reflection to below 0.5% per surface.

High-Reflection (HR)

Dielectric HR coatings for laser mirrors and cavity optics. Reflectivity >99.5% at design wavelength.

Broadband AR

BBAR coatings for wide spectral range applications. Low reflection across 400-700nm or other bands.

Laser Line Coatings

Optimized for specific laser wavelengths: 266nm, 355nm, 532nm, 1064nm, 10.6µm, etc.

Custom Coating

Custom coating designs for unique wavelength ranges, angles of incidence, and polarization requirements.

Engineering Considerations

Wavelength Selection

Material and coating selection must be matched to your operating wavelength band. We can help optimize for single-wavelength or broadband use.

Tolerance Budget

Surface quality, flatness, and centration tolerances directly impact cost. Our engineers can help balance performance requirements with manufacturability.

Thermal Considerations

High-power or wide temperature range applications require careful material selection to minimize thermal lensing and wavefront distortion.

Environmental Durability

For harsh environments, consider material chemical resistance, coating durability, and packaging options. We can provide MIL-spec testing on request.

Applications

Laser Systems

Beam focusing, collimation, and resonator optics for CW and pulsed laser systems.

Semiconductor Equipment

UV-grade optics with ultra-flat surfaces for wafer inspection and metrology.

Research & Laboratory

Custom and catalog optics for university and R&D laboratory setups.

Manufacturing & Customization

30+
Optical Materials
Custom
Sizes & Shapes
Quality Management
Partner Network
Evaluation
Custom Lead Time

Quality Assurance

Every component undergoes comprehensive inspection before shipment. Our quality control process includes:

  • Dimensional verification with calibrated metrology equipment
  • Surface quality inspection per MIL-PRF-13830B standards
  • Coating performance verification with spectrophotometry
  • Centration and wedge angle measurement
  • Cleanroom packaging for critical applications

Learn more about our quality processes

Available Documentation

Document Purpose
Inspection Report Confirms optical and mechanical specifications
Material Certificate Confirms substrate material and grade
Coating Report Confirms coating performance and wavelength range
Certificate of Conformity Confirms conformity to agreed requirements
Dimensional Report Confirms mechanical dimensions and tolerances

Documentation provided according to agreed project requirements.

How to Specify

When requesting a quote for optical mirrors, providing the following information helps us give you an accurate quotation:

Material
Substrate material
Size
Dimensions or diameter
Coating Type
Metallic or dielectric
Wavelength
Operating wavelength range
Surface Quality
Scratch-dig requirement
Angle
Angle of incidence
Quantity
Number of pieces

You May Also Need

Browse All Products

Explore our complete catalog of optical components

AI Optical Engineer

Get instant material and coating recommendations

Evidence Center

Inspection reports, coating curves, test data

Related Knowledge

Application Note

Surface Quality: Scratch-Dig Explained

Understanding MIL-PRF-13830B surface quality specifications and what they mean for your application.

 Knowledge Center

Optical Materials Guide

Compare 30+ optical materials by wavelength range, properties, and typical applications.

Engineering Documentation

PDF

High Power Laser Mirrors - Datasheet

Standard specifications, available options, and ordering information

Request
DWG

High Power Laser Mirrors - Drawing Template

Standard drawing with full dimension callouts and tolerance information

Request
3D

3D CAD Model (STEP)

3D solid model for integration into your optical design software

Request

Documentation available upon request. Custom specifications require engineering review.

Before Requesting a Quote

To help us provide an accurate quotation, please prepare the following information. Not all fields are required — send what you have, and our engineering team can help identify missing parameters.

✓ Material
BK7, fused silica, CaF₂, etc.
✓ Dimensions
Diameter, thickness, focal length
✓ Wavelength
Operating wavelength or range
✓ Coating
AR, HR, metallic, or uncoated
✓ Surface Quality
Scratch-dig, roughness
✓ Quantity
Prototype, low volume, or production
✓ Application
Laser, imaging, spectroscopy, etc.
✓ Operating Environment
Temperature, vacuum, cleanroom

Not sure about some specifications? Send what you have — our engineering team will help identify the missing parameters and recommend appropriate values for your application.

Related Products

BK7 Optical Mirrors

Standard reflective optics

Broadband Dielectric Mirrors

Wideband HR mirrors

Protected Silver Mirrors

High reflectance mirrors

Dielectric Mirrors

Custom wavelength HR mirrors

1064nm Laser Line Mirrors

Nd:YAG laser mirrors

Frequently Asked Questions

What are high power laser mirrors used for?

High Power Laser Mirrors are used in optical systems where precise control of light is required. Common applications include laser systems, imaging, spectroscopy, and scientific instrumentation.

What is the wavelength range?

The usable wavelength range depends on the selected material and coating. Please refer to the material specifications above or contact our engineering team for guidance.

Can I order custom sizes or specifications?

Yes. PhotonEdge offers custom diameters, focal lengths, and coating specifications outside our standard catalog. Custom optics require engineering evaluation. Lead time is confirmed with your quotation.

What coatings are available?

We offer a range of standard and custom coatings including AR, HR, broadband, and laser-line options. Coating selection depends on your wavelength range and application requirements.

What quality standards do you follow?

Our manufacturing partners operate under quality management processes aligned with ISO 9001 standards. All components undergo rigorous inspection including dimensional verification, surface quality assessment, and coating performance testing.

Do you provide inspection reports?

Yes. Inspection documentation including dimensional reports, surface quality verification, and coating performance data can be provided according to project requirements.

What is the typical lead time?

Custom optics require engineering evaluation. Lead time is confirmed with your quotation.

How do I request a quote?

Click the 'Request a Quote' button above. Please provide your required specifications, wavelength, coating, surface quality, and quantity for an accurate quotation.

Not sure which option is right for your project?

Describe your system requirements and our AI Optical Engineer will recommend materials, coatings, and specifications instantly.

Ask AI Optical Engineer

Ordering Information

Price Range
See Quote
Standard Lead Time
Ships within 1 week after payment
Custom Lead Time
Subject to engineering evaluation
MOQ
1 Piece
Samples
Available

Contact us for exact pricing based on your specifications.

Specification Parameters

Typical Specifications shown on this page are standard capabilities. Available Options include alternative materials and coatings. Custom Specifications are available per your drawing. Requirements beyond standard capability are marked Subject to Engineering Review.
